VISTAFOLD

Sliding folding stacking door

  • Door panels designed in an odd number format for stacking
  • Tracks for both internal and external applications
  • Strong durable design
  • Both options in Double Glazing & Single glazing
  • 45mm 60mm & 90mm door stiles available
  • Large range of powder coating options available
  • Designed with effective seals for water tightness & eliminating draft

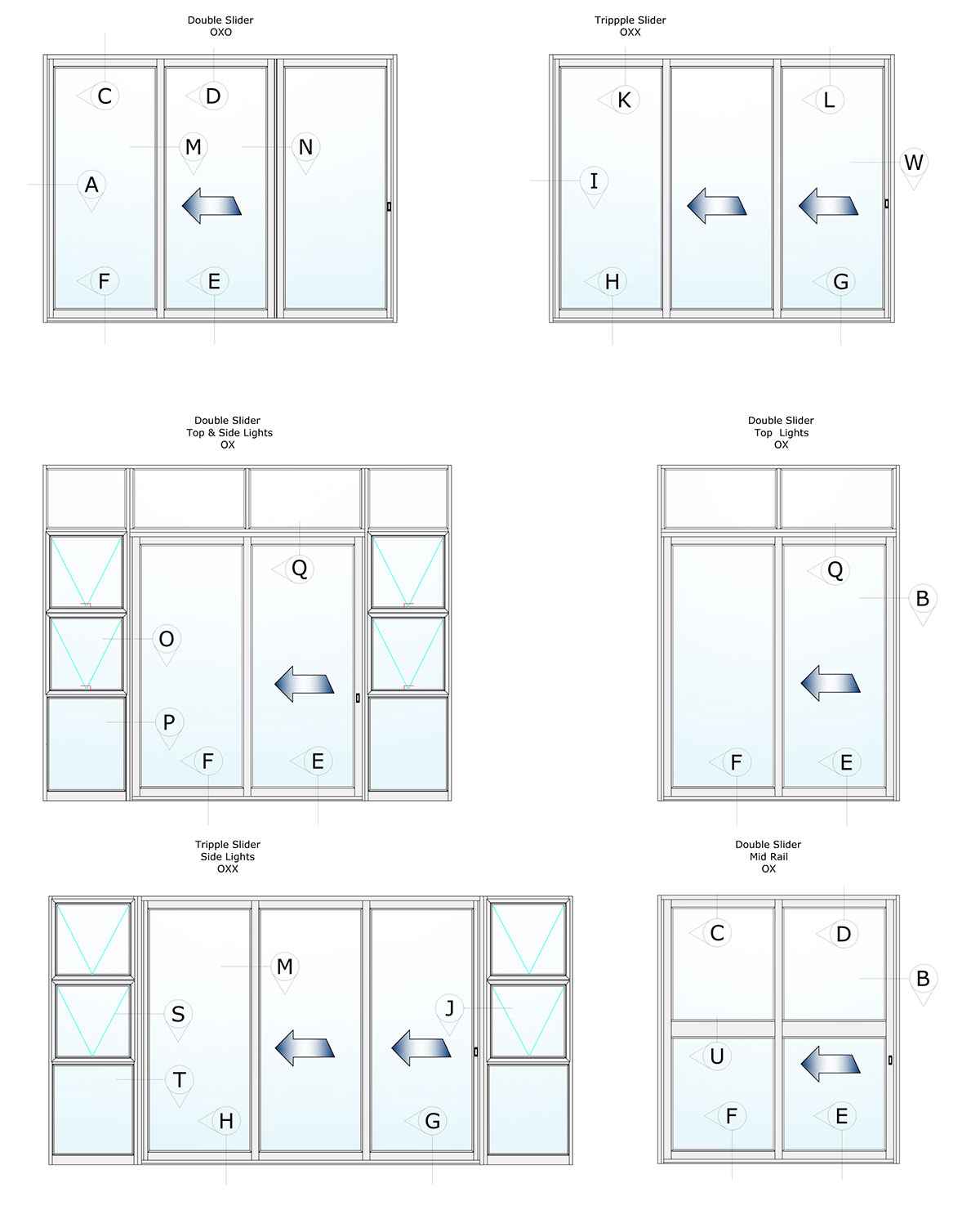

HEAVY DUTY SLIDING DOORS

Galaxy slider by HBS | Palace Slider by Wispeco | Heavy duty slider by HH

  • Door panels designed in an odd number format for stacking
  • Tracks for both internal and external applications
  • Strong durable design
  • Both options in Double Glazing & Single glazing
  • 45mm 60mm & 90mm door stiles available
  • Large range of powder coating options available
  • Designed with effective seals for water tightness & eliminating draft

WINDOWS & HINGED DOORS FOR SHOPFRONTS

Windows, Fixed and Hinged Doors

  • Custom made to fit any opening
  • Both options in Double Glazing & Single glazing
  • 76 to 152mm Mullion/Transom profiles allows the Architect, Designer or Fabricator the freedom to choose the structural capacity best suited for the application. Mullions depths range to suit most heights for wind loading
  • Windows can be added into the frame work as sidelights for hinged or sliding doors
  • Large range of powder coating options available

CASEMENT WINDOWS

Windows by HBS, Wispeco, and HH

  • Available in various casements to suit budget in both top and side hung formats
  • Both options in Double Glazing if using Cas 38/44 & Single glazing Case 28/30.5
  • Casement mullions from 28-135mm with Inertia from 2 to 140cm .
  • Up to 3300mm high at 1200 centres under A1 conditions.
  • Flexibility to integrate with Sliding doors & hinged doors can be joined directly with Casement.
  • Large range of powder coating options available

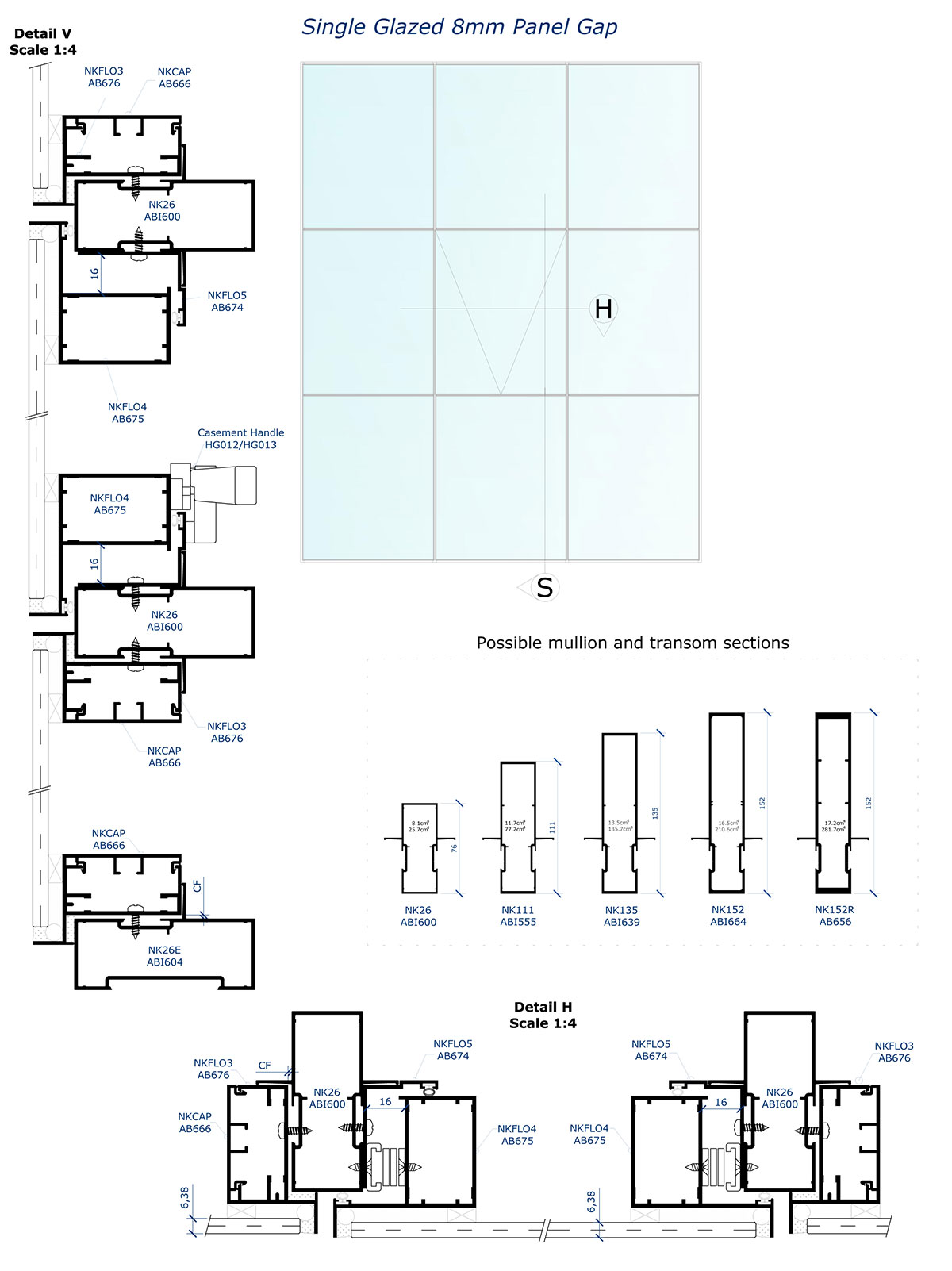

FLUSH GLAZING

Fixed & opening sashes by HBS

  • 76 to 152mm Mullion/Transom profiles allows the Architect, Designer or Fabricator the freedom to choose the structural capacity best suited for the application.
  • Building Regulation L/175 compliance can be obtained in both domestic and commercial applications
  • Economical and structurally optimal structural profiles can be used in Flush Glazing.
  • Flush Glazing can accommodate single and double glazing from 6mm to 28mm providing the potential for energy efficient performance.
  • U-values down to 2.91 can be achieved with standard 24mm (6-12-e6) glass with air fill.
  • Natural ventilation can be achieved with Single and Double Glazing sashes.
  • Side and Top Hung Sashes available.

TILT & TURN

South African options by HBS

  • Superior, Safe and flexible ventilation options are primary benefits of HBS Turn-Tilt / Tilt-Turn windows.
  • Tilt allows for partial ventilation.
  • Hot air vent via the top of the window whilst the Sash remains locked and safe.
  • Weather-proofing is partially retained in this position. Rain water will be drained off.
  • Turn allows for full open ventilation.
  • Cleaning externally of the Sash and any side lights can be done in this position.

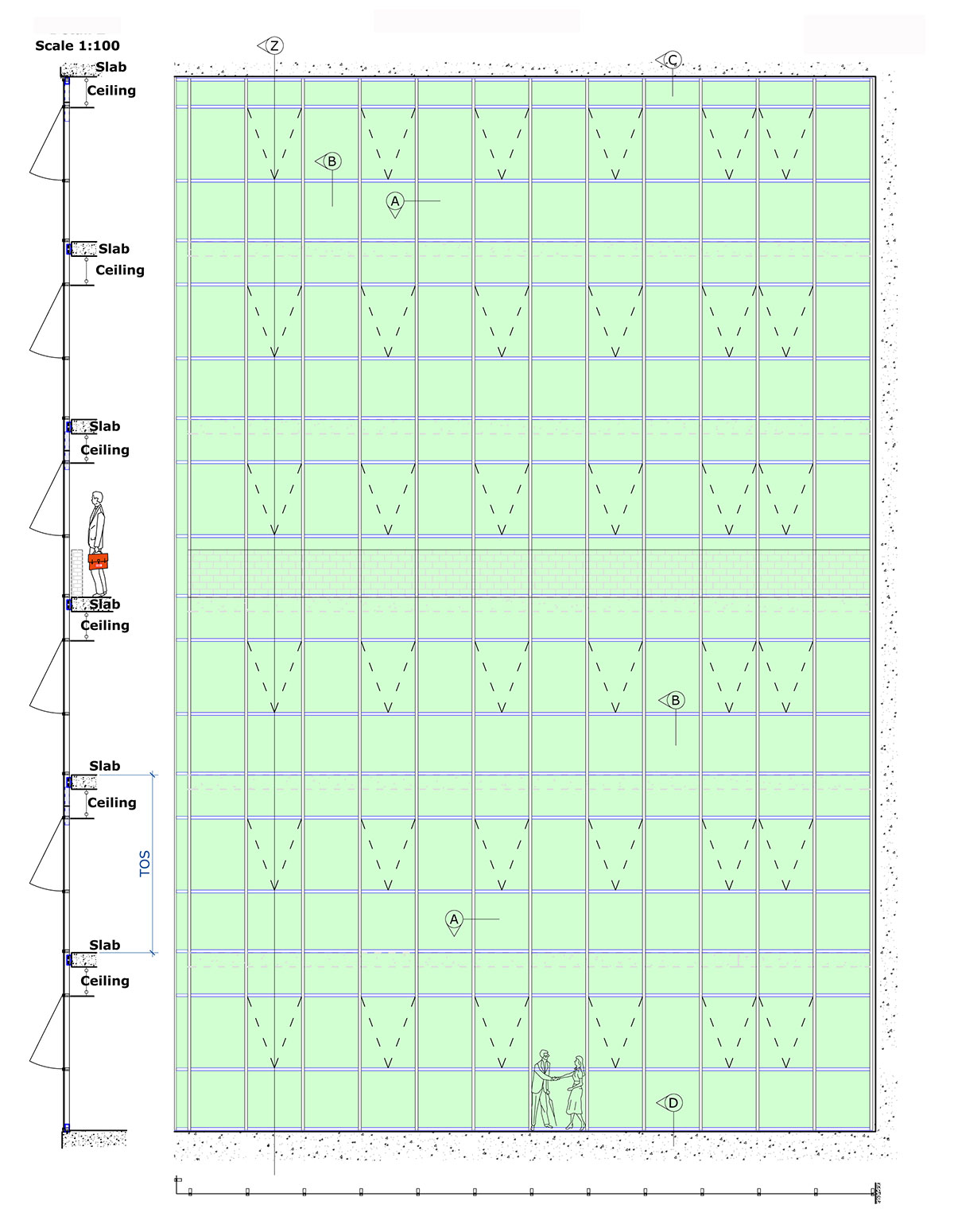

CURTAIN WALLING

Pressure & Flush glazing options by HBS

  • 67 to 450mm Mullion profiles allow Architects the advantage of specifying both Single, Double and Triple volume unsupported facade structures. Compliance with Building Regulations and L/175 deflection limits can be achieved without steel support.
  • The advantage of thermal breaks is that SANS204 compliance can be achieved in almost any installation.
  • Energy efficient sealed glazing units can be used where required to comply with current Energy legislation.
  • U-values below 2.5 can be accomplished with 24mm(6-12-6) Low-e Double Glazing
  • Opening sashes of 1200 x 1500mm in A4 conditions.
  • 1 Sash Profile for Single and Double Glazing.
  • Sash and Sub-frame install as a unit
  • “Invisible” in-line External appearance.
